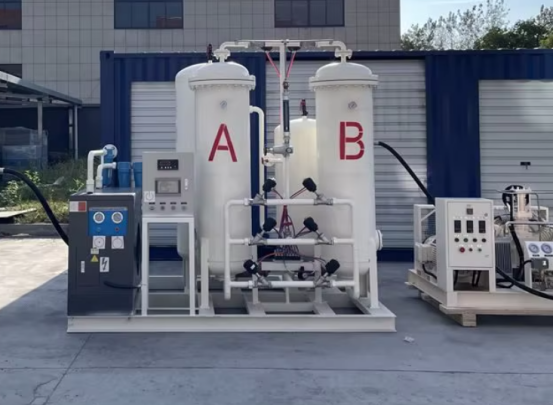

Hot Sell PSA /VPSA/VSA /Cryogenic Small and Large Oxygen Generator
VPSA Oxygen Generator
Purity: 90%-93%
Capacity: 200~20000Nm3/h
Pressure: Normal 0.4Mpa
Energy for Consumption Oxygen:0.36~0.42KWh/Nm
The VPSA precess is similar with PSA. VPSA oxygen generator use air blower to supply compressed air into a adsorption tower, adsorption in low pressure and adsorption in vacuum status. Under atmosphere or slightly abover atmosphere pressure, using mixed bed composed of VPSA special molecular sieve and dryer to absorb the N2,CO2.H2O and other impurities, making oxygen accumulated and collected at the end of bed .Saturation sorption of molecular sieve bed will be desorbed in vacuum status ,so as to circularly generate high purity Oxygen . (90~95%).
Compared with PSA process, VPSA has complex process equopment and higher investment but low power consumption, suitable for large scale oxygen production.
Product Parameters
| Gas production m³/h | Oxygen concentration% | Oxygen pressure Mpa | Power 220V Power/kw | Host weight/kg | Dimensions/mm | Air loss factor | Number of bottles per day 40L/120-150kg |
| 3 | 93±3 | 0.4±0.1 | 0.2 | 600 | 15009001500 | 13.5 | 12-15 |
| 5 | 93±3 | 0.4±0.1 | 0.2 | 900 | 16009001500 | 13.5 | 20-24 |
| 10 | 93±3 | 0.4±0.1 | 0.2 | 1200 | 16009001900 | 13.5 | 40-48 |
| 20 | 93±3 | 0.4±0.1 | 0.2 | 1500 | 190010002180 | 13.5 | 80-96 |
| 30 | 93±3 | 0.4±0.1 | 0.2 | 2000 | 200011002180 | 13.5 | 120-154 |
| 40 | 93±3 | 0.4±0.1 | 0.2 | 2500 | 260012002300 | 13.5 | 160-192 |
| 50 | 93±3 | 0.4±0.1 | 0.5 | 2800 | 180015002400+800 | 13.5 | 200-240 |
| 60 | 93±3 | 0.4±0.1 | 0.5 | 3200 | 180015002600+800 | 13.5 | 240-184 |
| 70 | 93±3 | 0.4±0.1 | 0.5 | 3500 | 180016002800+800 | 13.5 | 280-236 |
| 80 | 93±3 | 0.4±0.1 | 0.5 | 4000 | 180016002900+1000 | 13.5 | 320-394 |
| 90 | 93±3 | 0.4±0.1 | 0.5 | 4800 | 200016002800+1000 | 13.5 | 360-432 |
| 100 | 93±3 | 0.4±0.1 | 0.5 | 5800 | 220016002900+1000 | 13.5 | 400-480 |
| 120 | 93±3 | 0.4±0.1 | 0.5 | 6500 | 240016003100+1000 | 13.5 | 480-576 |
Technical Feature
Fully automatic control system.
The energy consumption is low,low Production Cost
Simple Process and Less Equipment
Quick Starting and Easy Stopping.
Suitable for middle and large scale oxygen production.
Low working pressure and more safety.
Long Life and low maintenance.
| Packaging |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
In addition to PSA Oxygen Generators, we also produce VPSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in VPSA Oxygen Systems or other products, please feel free to send an email to info@gneeheatex.com. We will be very happy to serve you.
